You are here: Home » Fully Automatic Paper Bag Making Machine » V Bottom Paper Bag Making Machine
V Bottom Paper Bag Making Machine - Rokin Machinery
The V Bottom Paper Bag Making Machine is an advanced equipment that produces top-notch V Bottom paper bags. This machine is designed for different sizes and materials of paper bags, including kraft paper, art paper, and white card paper.
It includes a high-level PC control framework considering exact pack development and precise estimations.
- High-speed production
- Adjustable bag sizes
- Automatic paper feeding system
- PLC control system
- Multi-functional
- Energy-efficient
- Low maintenance
Technical Advantages Of V Bottom Paper Bag Making Machine
Accurate Bag Formation
The machine guarantees exact bag arrangement with exact collapsing and sticking, delivering uniform and aesthetically satisfying bags.
Versatility
The machine can produce different sizes and kinds of V-bottom paper bags, making it reasonable for various applications.
User-Friendly
The machine is not difficult to work with and accompanies easy-to-use controls, making it appropriate for operators with differing levels of involvement.
Environmentally Friendly
The machine uses environmentally friendly materials, making it a maintainable and ecologically adaptable choice for paper bag production.
Easy Operation
The machine's greatest paper width and most extreme pack length change as per the particular model and can go from 120mm to 600mm and 160mm to 530mm separately.
Choose The Most Suitable V Bottom Paper Bag Making Machine
The Parameter of a V-bottom paper bag machine commonly incorporates technical details, such as power supply, most extreme paper width, excellent pack length, bag-making rate, and machine weight.
The power supply of a V-bottom paper bag machine can go from 220V to 380V, depending upon the model and kind of activity.
The machine's greatest paper width and most extreme pack length change as per the particular model and can go from 120mm to 600mm and 160mm to 530mm separately.
The heaviness of the V-bottom paper bag machine can go from 1500kg to 4000kg, contingent upon the model and capacity.
Model
RKJD-250
RKJD-350
Paper bag production speed
350-420pcs/min
600-700pcs/min card
Max. Machine speed
75m/min
120m/min
Paper bag cutting length (C)
110-450mm
155-715mm

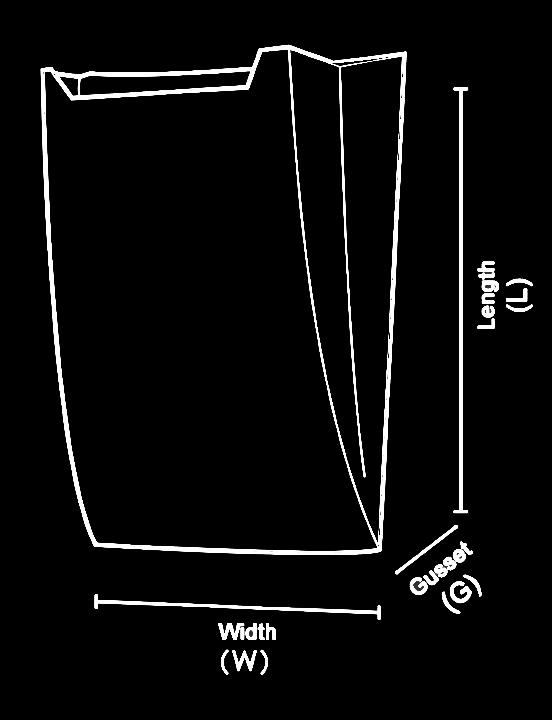

Paper bag width (W)
70-250mm
70-350mm
Side insert width（G）
20-120mm
20-120mm
Bag mouth height
15/20mm
15/20mm
Paper thickness
35-80g/m2
35-80g/m2
Paper roll width
100-760mm
100-980mm
Power
10KW
20KW
Weight
4500 KGS
6500 KGS
Dimension
L6800*W1600*H1600mm
L7500*W2300*H1800mm
High Speed V Bottom Paper Bag Machines Video
The operation of a V-bottom paper bag machine regularly includes a few stages. First, the machine takes a roll of paper and feeds it through several rollers to level it out and guarantee even thickness. Then, the paper is cut into rectangular pieces and collapsed in half to frame the pack's body. The V-shaped bottom is made by collapsing the sides of the pack and squeezing them along with a progression of wrinkles. The edges of the pack are then fixed utilizing intensity or cement, and the completed item is cut from the remainder of the paper roll.
Contingent upon the particular machine, there might be extra highlights, for example, print abilities or programmed bag counting and stacking. By and large, the activity of a V-shaped bottom paper bag-making machine is intended to productively and precisely produce excellent bags for different enterprises.
Applications Of V Bottom Paper Bag Making Machine
V bottom paper bag making machines are utilized in different businesses to deliver great paper sacks with an Angular base, offering productive and computerized processes. Here are a few normal utilizations:
Retail and Shopping Bags
V bottom shopping paper bag-making machines can handle various sorts of paper. The V shaped bottom adds stability to the bag and allows it to stand upright, making it suitable for carrying various goods.
Food Packaging
V bottom food paper bags can package dry goods. Additionally, these bags are often made from food-grade materials to ensure the safety and freshness of the packaged food items.
Cosmetics and Personal Care Product Bags
V bottom shopping paper bag making machines can handle kraft paper, white cardboard, and laminated paper. The V shaped bottom bags suitable for carrying small goods, such as cosmetics and personal care products .
Industrial and Hardware Bags
V bottom paper bags can also be used for packaging industrial and hardware products like screws, nails, small tools, and parts. The V-shaped bottom helps keep these items organized and prevents them from spilling out of the bag during transportation or storage.
Gift Bags
V bottom gift paper bag making machines are commonly used in retail stores, boutiques, and special occasions like birthdays and holidays. The V-shaped bottom adds an elegant touch to the bag's appearance, making it more visually appealing for gifting purposes.
Pharmaceutical Packaging
V-bottom medical paper bag making machines can be adapted for packaging medications, medical supplies, and other pharmaceutical products. The bags can be designed to meet specific requirements, such as child-resistant closures or tamper-evident features.
V Bottom Paper Bag Making Machine FAQs
A V Bottom Paper Bag Making Machine is a machine used to produce paper bags with a V-shaped bottom, making them steady and uncomplicated to stand upstanding.
Mostly, any paper appropriate for creating packs can be utilized with this machine. This incorporates kraft paper, covered paper, and overlaid paper.
Some benefits of utilizing this sort of machine conclude the capacity to deliver bags with a more steady base, which can hold heavier things without tipping over. This makes them ideal for supermarkets, malls, and other retail conditions.
Yes, shopping paper bag making machines support customization. They can be equipped with additional modules or attachments to incorporate features, for example, handles, based on the unique requirements of businesses.
A shopping paper bag making machine is a specialized equipment for manufacturing paper bags at high speed. It automates the whole process of cutting, creasing, folding, and gluing paper to high speed produce quality paper bags. Shopping paper bag making machines commonly use in retail and grocery stores.
