RKFD-330 Square bottom paper bag machine is ideal for producing mid-size and big-size paper bags fast.
It is side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, and bag out in one line. Easy to operate, highly efficient, stable, and effectively saves labor costs. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped Yaskawa PLC system ensures that the machine can perform quickly and stably. Special bags collection platform and counting function, improve the packing efficiency of paper bags packing.
This square bottom paper bag machine can produce paper bags of varying greatly sizes at a high speed, thus is especially suitable for being applied in the food and clothing industries.
| Technical Sheet

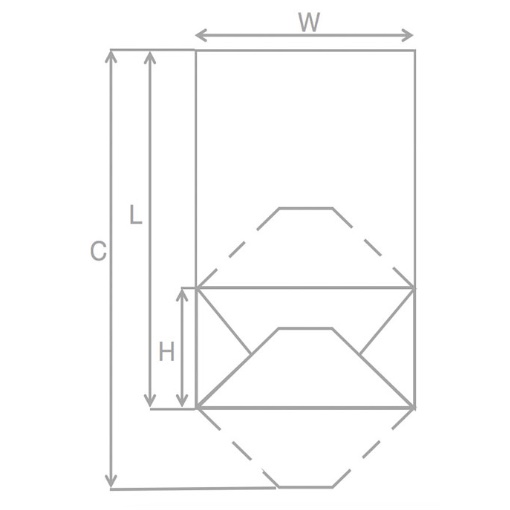

| Model | RKFD-330 |
| Paper bag cutting length (C) | 260-530mm |
| Paper bag width (W) | 130-330mm |
| Paper bag bottom width (H) | 70-180mm |
| Paper roll width | 400-1050mm |
| Paper thickness | 60-160g/m2 |
| Max. speed | 150-200pcs/min |
| Power | 8KW |
| Dimension | L10000*W2100*H2100mm |
| Weight | 8500 KGS |
| Why Choose RKFD-330 Square bottom paper bag machine
The RKFD-330 Square bottom paper bag machine is an excellent choice for any business looking to streamline its bag production process. Here are just a few reasons why:
Firstly, this machine boasts precision and efficiency in its operation. With advanced technology and high-quality materials, the RKFD-330 produces bags at a rapid pace with minimal errors.
Additionally, this machine offers versatility in bag size and style. Whether you need small or large bags, with or without handles, the RKFD-330 can handle it all.
Another benefit of this machine is its durability. Built to withstand heavy use and wear and tear over time, the RKFD-330 is a long-lasting investment for your business.
Furthermore, the ease of use of this machine cannot be overstated. With user-friendly controls and clear instructions provided by the manufacturer, even those new to bag-making machinery will find it simple to operate.
Choosing the RKFD-330 means investing in a product backed by excellent customer service from experienced professionals who are ready to answer any questions you may have about your purchase.
| How Does Square bottom paper bag machine Work？
The RKFD-330 Square bottom paper bag machine is a state-of-the-art machinery designed to produce high-quality square-bottom paper bags. It works by taking in large rolls of paper, which it then cuts, folds, and glues together to form the finished product.
Firstly, the roll of paper is fed into the machine from one end. The machine then unrolls it and feeds it through several rollers that smooth out any wrinkles or creases in the material. After this, the paper passes through a cutting device where it's cut to size according to specific requirements.
Next, the cut sheets pass through various folding mechanisms that transform them into their unique square shape with an open top. Then they pass under glue applicators that apply adhesive on both sides of each sheet.
All layers are combined using pressure rollers to create a strong bond between each layer ensuring no separation during use.
With its advanced technology and precise attention-to-detail manufacturing process, the RKFD-330 Square bottom paper bag machine delivers fast production speeds while producing high-quality products consistently at low cost，making it ideal for businesses looking for efficient packaging solutions.
